Stratomaster XTreme

The XTreme EFIS is an affordable mini EFIS. It can be configured as a PFD (with AHRS sensors added), and/or an engine monitor (with RDAC added). It includes a GPS receiver that is used to provide ground speed and range information, as well as a backup/control for the AHRS. If you do not select the SP-7 attitude sensor, you can still have a GPS-derived bank angle display!

You can use it as...

  • Primary EFIS
  • Backup EFIS
  • Engine Monitor
  • EFIS/Engine Monitor
  • Basic GPS Navigation

Some might use it for just 1 function, or you could use all functions!

The XTreme features Basic GPS navigation (waypoints, routes, CDI [no moving map]), and Internal Autopilot (just add servos and connection module).

The XTreme EFIS is a mini-EFIS unit based on a 4.3" sunlight readable, wide viewing angle, high resolution LCD display. It integrates an SD card reader (for software updates and for flight data recorder), 5 function buttons and a rotary control.

It can be connected to standard MGL Avionics AHRS sensors and RDAC (engine monitor) boxes. It also integrates a CAN Aerospace compatible communications interface that will be used with future versions of MGL Avionics sensors. Standard RS-232 ports are also available.

The XTreme is designed to fit a standard 3 1/8" round instrument hole. The body is located off-center allowing the unit to replace instruments on the right side of a standard 6-pack configuration or any other location that currently occupies two instruments.

Due to the light weight and very low mounting depth no complicated mounting brackets or trays are needed. Power use is low and operation from much less than 12V to around 28V is fully supported.

For Full Details and the most up-to-date information on the Stratomaster XTreme, go to: http://www.mglavionics.com/html/xtreme.html

XTreme Simulator Available!

Download: XTreme Simulator (Windows PC)

XTreme User's Manual:

Download: XTreme manual (PDF)

View Package Deals


You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

XTreme Features
Hardware:
  • Powerful ARM processor
  • 4.3” high resolution 480x272, sunlight readable, wide viewing angle, 600 nits TFT LCD display
  • LED backlight (brightness can be adjusted for low light flying conditions)
  • Fits standard 3 1/8” aircraft instrument panel hole
  • SD Card interface for data recording, user splash screens, checklists, graphic information pages, firmware upgrades etc
  • 1/8” NPT female fittings for Altitude and Airspeed pitot tube connections
  • 1x RS232 communication port
  • 1x MGL Avionics Airtalk communication port
  • 1x MGL Avionics RDAC communications port
  • 1x CAN communication port
  • Rotary control plus 5 independent buttons for easy menu navigation and user input
  • External alarm switch output for an external indicator lamp etc
  • Built in 50 Channel GPS receiver with over 1 million effective correlators with high immunity to jamming
  • Time To First Fix (TTFF) of less than 1 second
  • External active GPS antenna connection
  • Support for an internal or an external GPS receiver
  • Built in RTC (Real Time Clock)
  • Wide input supply voltage range of 8 to 30V DC
  • Built in voltage reversal and over voltage protection for harsh electrical environments
  • Light weight design

EFIS:

  • Attitude display. (Note 1)
  • Magnetic heading indication. (Note 2)
  • GPS-derived bank angle if no Attitude sensor
  • Heading bug
  • Precision altimeter from –1,000ft up to a maximum of 30,000ft (-304m to 9144m). Altitude can be displayed in feet or meters
  • Altitude bug
  • Airspeed indicator (16mph to 250mph), 1mph resolution. Airspeed can be displayed in mph, km/h or kts
  • Digital VSI indicator (+/-20 ft/min to +/-10,000 ft/min) and analog VSI indicator (+-2,000 ft/min range). VSI can be displayed in ft/min or m/s.
  • Serial Altitude encoder output via a RS232 port
  • Density altimeter
  • OAT (Outside Air Temperature) display using an external OAT probe
  • Supply Voltage display
  • Stopwatch timer
  • Automatic flight timer
  • RTC (Real Time Clock)
  • Glide and climb ratio indicator
  • Barometer (actual local pressure)
  • TAS (True airspeed) display
  • G-Force indication. (Note 1)
  • Wind speed and wind direction indication. (Note 2)
  • Turn Indicator. (Note 1)
  • Slip/Skid indicator. (Note 1)
  • Basic GPS navigation (waypoints, routes, CDI [no moving map])
  • Internal Autopilot (just add servos and connection module)

Engine Monitor: (Note 3)

  • 1x Engine RPM
  • 1x Rotor RPM (Note 5)
  • 1x Manifold pressure (Note 6)
  • 1x Oil pressure input
  • 1x Oil temperature input
  • 2x Auxiliary analog channels (Pressure/Temperature/Current)
  • 12 Channel EGT/CHT display
  • 2x Fuel Flow
  • 2x Fuel Level
  • Programmable maintenance timer for scheduled routine engine maintenance
  • Engine display screens are automatically configured to optimize screen space depending on what parameters are being displayed
  • Settable Hobbs meter (password protected)
  • Fuel range / endurance based on TAS or GPS ground speed
  • Supply Voltage display
  • Current monitor to measure charge/discharge currents. (Note 4)
  • Engine leaning feature

General:

  • Alarms on most displays
  • Programmable maintenance timer for scheduled routine engine maintenance
  • Programmable airframe timer for scheduled airframe maintenance.
  • Records maximum and minimum values of most displayed values
  • Built in black box recorder – records all flight data, engine, attitude and GPS data to SD card. Data can be exported to Google Earth, Microsoft Excel, etc.
  • Includes a 1000 entry automatic flight log (Records start date&time, flight time, pilot number, Hobbs time, maintenance time, max altitude, airspeed and VSI reached during the flight)
  • User configurable start up (Splash) screen
  • Unlimited configurable checklists
  • Unlimited configurable graphic information displays
  • Automatic or manual local magnetic variation
  • Dual menu system for quick item selection and user setups
  • Sunrise/Sunset calculator
  • Firmware upgrades via SD Card
  • 3 year limited warranty (MGL Avionics US)

(Note 1) Requires optional MGL Avionics AHRS sensor unit (SP-7/SP-5)

(Note 2) Requires optional MGL Avionics compass sensor unit (SP-6)

(Note 3) Requires optional MGL Avionics RDAC unit

(Note 4) Requires optional MGL Avionics current monitor sensor

(Note 5) Requires RDAC with Rotor RPM input

(Note 6) Requires RDAC with Rotor Manifold Pressure

XTreme Dimensions
The XTreme fits into a round 3 1/8 hole, but since the screen is a 4.3 sunlight readable LCD, the housing is offset from the hole.

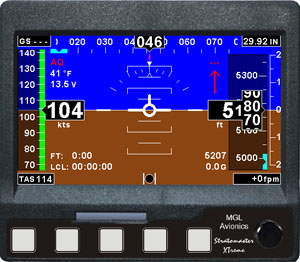

Split Screen: AHRS and Basic GPS Navigation

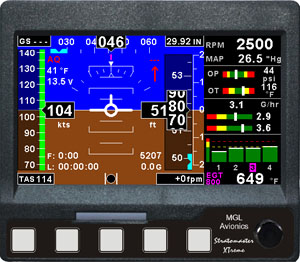

Split Screen: AHRS and Engine Monitoring

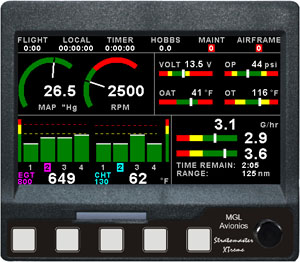

Engine Monitoring Screen

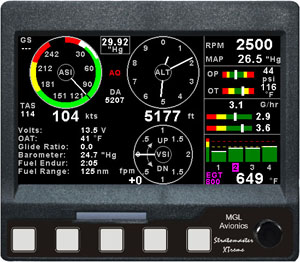

Split Screen: VFR Flight Information and Engine Monitoring Information

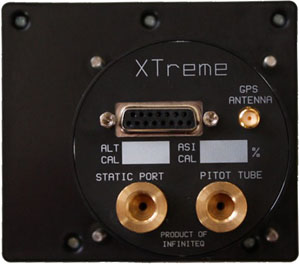

Back View of XTreme Instrument


Sonex/Stratomaster XTreme Packages


Sonex/AeroVee Package
Stratomaster XTreme

$2234.75

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

Package Includes:

  • Stratomaster XTreme Instrument base unit (Includes GPS antenna, and OAT probe)
  • RDAC-XF Engine Information Computer
  • RDAC-XF Harness with CAN Bus
  • MGL Xtreme EFIS cable harness with CAN
  • SD card with North American data loaded
  • Qty 4 EGT Senders
  • Qty 4 AeroConversions CHT Senders
  • Sonex Fuel Level Probe

No other wiring harness is required as probes simply plug into the RDAC Computer unit. Notice for AeroVee Turbo: RDAC-XF MAP upgrade is required to accept manifold pressure input.

Purchasing this unit tech support from MGL Avionics

We recommend purchasing the Oil Temp and Oil Pressure Senders from Sonex to use with your AeroVee (not required for Jabiru Engine Installations).


Sonex/AeroVee Turbo Package
Stratomaster XTreme

$2294.75

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

Package Includes:

  • Stratomaster XTreme Instrument base unit (Includes GPS antenna, and OAT probe)
  • RDAC-XF-MAP Engine Information Computer with Manifold Pressure input
  • RDAC-XF Harness with CAN Bus
  • MGL Xtreme EFIS cable harness with CAN
  • SD card with North American data loaded
  • Qty 4 EGT Senders
  • Qty 4 AeroConversions CHT Senders
  • Sonex Fuel Level Probe

No other wiring harness is required as probes simply plug into the RDAC Computer unit. Notice for AeroVee Turbo: RDAC-XF MAP upgrade is required to accept manifold pressure input.

Purchasing this unit tech support from MGL Avionics

We recommend purchasing the Oil Temp and Oil Pressure Senders from Sonex to use with your AeroVee (not required for Jabiru Engine Installations).


Sonex/UL Power/Jabiru 2200 Package
Stratomaster XTreme

$2304.75

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

Package Includes:

  • Stratomaster XTreme Instrument base unit (Includes GPS antenna, and OAT probe)
  • RDAC-XF Engine Information Computer
  • RDAC-XF Harness with CAN Bus
  • MGL Xtreme EFIS cable harness with CAN
  • SD card with North American data loaded
  • Qty 4 EGT Senders
  • Qty 4 CHT Senders
  • Sonex Fuel Level Probe

No other wiring harness is required as probes simply plug into the RDAC Computer unit.

Purchasing this unit includes tech support from MGL Avionics


Sonex/Jabiru 3300 Package
Stratomaster XTreme

$2474.75

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

Package Includes:

  • Stratomaster XTreme Instrument base unit (Includes GPS antenna, and OAT probe)
  • RDAC-XF Engine Information Computer
  • RDAC-XF Harness with CAN Bus
  • MGL Xtreme EFIS cable harness with CAN
  • SD card with North American data loaded
  • Qty 6 EGT Senders
  • Qty 6 CHT Senders
  • Sonex Fuel Level Probe

No other wiring harness is required as probes simply plug into the RDAC Computer unit.

Purchasing this unit includes tech support from MGL Avionics


Stratomaster Options


FT-90 Gold Cube Fuel Flow Sender

$200.00

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

The FT-90 Gold Cube Fuel Flow Sender is producted by Electronics International, Inc. and sold by MGL Avionics for use with their instruments.

  • The fuel flow sender is compatible with all of MGL Avionics range of products.
  • Considerably less pressure drop than other units on the market, and a blocked rotor does not effect pressure drop.
  • Overall accuracy and linearity superior to most other flow transducers.
  • The Gold Cube FT-90's design vacates bubbles and is not nearly as susceptible to debris as other units on the market.
  • Rotor pin to jewel clearances are matched on every unit resulting in a single K-factor for all units (installation configuration can effect the K-factor).

Download the FT-90 Data Sheet


SP-6 Magnetometer (Compass sensor)

$260.00

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

The SP-6 contains a three-axis magnetic field sensor and a 2-axis accelerometer. Featuring a high resolution 16 bit measurement system, a powerful ATMega processor is used to output tilt-compensated heading information. If an SP-7 AHRS is used on the same Airtalk communications link, tilt compensation is augmented using gyro data.


SP-7 AHRS Attitude (horizon) sensor

$700.00

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

The SP-7 contains 3 MEMS gyros and 3 MEMS vibrating body accelerometers. Using a 16 bit data acquisition subsystem, a powerful ARM7 32 bit processor is used to provide stabilized attitude information. SP-7 can handle roll rates of approximately 250 degrees per second. Together with an SP-6 magnetometer on the same Airtalk communications link, the gyro heading can be automatically slaved to the magnetic heading.


CAN Bus Harness Kit (for connecting both SP-6 and SP-7 sensors to instrument)

$125.00

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.


STX 165R Sandia Remote Mode C Encoding Transponder for MGL iEFIS and XTreme

$1769.00

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

The STX 165R elevates transponder capability to a new level while reducing both weight and size. The solid state transmitter design provides 200 Watts nominal output with no warm up time. And because it’s all solid state, power requirements are at an absolute minimum.

The STX 165R will accept either Gillham Gray Code or RS-232 altitude input for Mode C operation. The STX 165R can be mounted with or without the mounting tray either vertically or horizontally. The STX 165R is especially suited for installations where size, weight and power consumption are critical. All functions of the STX 165R can be remotely controlled by the MGL Stratomaster XTreme and iEFIS Explorer via the RS-232 port.

Package includes MGL/Sandia wire harness, RG 400 coaxial antenna cable, and the Delta Pop brand airfoiled transponder antenna.


Trig TT22 Remote Mode S Encoding Tranponder for MGL iEFIS and XTreme (1090ES ADS-B Out Capable)

$2549.00

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

Mode A and C transponders are now being replaced by Mode S technology which is optimized for tomorrow’s airspace requirements. Despite its modest size the TT22 is a heavyweight performer, at 250 watts nominal power output this class 1 transponder meets the latest FAA TSO C166b standards for ADS-B Out. The TT22 is suitable for use in higher performance aircraft flying above 15,000 feet and / or above 175 knots.

Package includes Trig TT21/22 Transponder CAN Interface harness, RG 400 coaxial antenna cable, and the Delta Pop brand airfoiled transponder antenna.


MGL Autopilot Servos (2) and Harness

$2090.00

You must be logged-in as a Sonex Aircraft plans owner to view this product category.

Please use our Instruments Order Form for Mail or Fax orders.

The MGL Avionics iEFIS (and iEFIS Lite) contains a built-in autopilot. All you do is install our servos in the aircraft and the control and AP engage/disengage is handled directly by the iEFIS using the keypad, or via a remote switch. No other control modules are required.

The Servos connect to the iBox via the CAN Bus network like all other system devices.

The EFIS handles all autopilot controls so that once you have engaged it, it will couple with any navigation source you select from that point on seamlessly. There is no need to change modes.

Download MGL Autopilot Manual

Package includes Qty 2 MGL Avionics Servos with mounting hardware and pushrod kit, and MGL CAN Bus Harness Kit for 2 Servos
